For those that like the tech - below outlines the machine at the forefront of ibex land clearing.

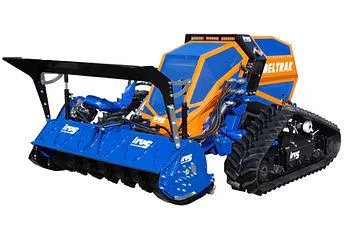

Irus Deltrak 50V3 - Tool Carrier
What Powers the 50V3
- Diesel Engine
-
Doosan 3-cylinder common-rail turbo diesel engine
-
Exhaust level: EU level V / EPA TIER 4 final 37 kW (50 HP)
-
Water-cooled, electric starter, operating hours counter, oil and temperature monitor
How Fast?
- Multidirectional
Forward: 0 - 10 km/h | Reverse: 0 - 10 km/h Maximum speed is continuously adjustable via rotary potentiometer on the hand held transmitter
How big is the 50V3?
- Dimensions
-
1940 x 1300 - 1150 HighStandard
-
1940 x 1700 - 1150 With Track width extended.
What Drives the Tracks
-Hydraulics
-
80 litres at max. 350 bar
-
Hydraulic crawler running gear with direct drive Proportional speed control of each crawler running gear via remote control both forward and reverse.
What's the Track Width
- Adjustable
Optional Hydraulic Track Width Adjustment:
Adjustable from 1300 – 1700 mm Max. slope incline (depending on subsoil): Up to 60° with applicable equipment
How Heavy is the 50V3?
- Weight
-
1100 - 1200 Basic
-
Up-to 1800kg with implement and counterweights.
The Tools
Forest Mulcher with Fixed Square Carbide Teeth
Forestry Clearing
• forest rotor
• fixed square carbide cutting teeth
• teeth can be replaced singly
• hydraulic front panel
• axial piston bent axle motor

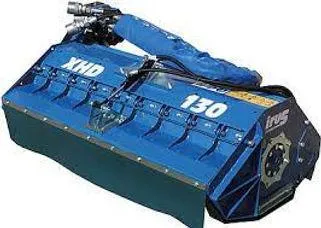

XHD Flail Mower 130 - Flail Hammer
Mulching & Mowing
• double spiral rotor
• SIMPLEX XHD pruning hammers
• adjustable trailing roller and skids
driven via axial piston motor
Stump Grinder
Grinding Stumps below ground level.
-
Solid steel cutting wheel
-
Cutting diameters of 400mm
-
Round carbide cutting teeth
-
driven by axial piston bent axis motor
